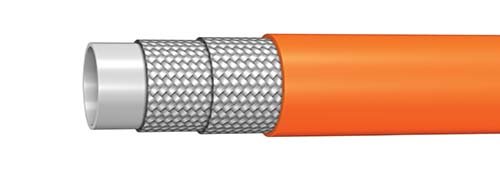

Inner tube
Thermoplastic Elastomer
Reinforcement
One or more Braids of Synthetic Fiber
Cover
Polyurethane, Orange Color
Application
Standard Sewer cleaning vehicles and cleaning equipments. Special construction for optimum cut and wear resistance with bonded tube and cover. Available in long lengths with a special cover resistant to microbiological degradation light weight compared to Conventional rubber alternatives and increased lifetime
Temperature Range
Continuous: -40°C to +60°C
Note
Special colours available on request
| Item Code | Dash Size | DN |  ID |  OD |  WP |  BP |  BR/r |  W |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | g/m | |||
| PH301-03 | -03 | 05 | 3/16 | 4.8 | 0.413 | 10.5 | 2500 | 175 | 6250 | 438 | 1.6 | 40 | 83 |
| PH301-04 | -04 | 06 | 1/4 | 6.4 | 0.505 | 12.8 | 2500 | 175 | 6250 | 438 | 1.6 | 40 | 118 |
| PH301-06 | -06 | 10 | 3/8 | 9.5 | 0.640 | 16.3 | 2500 | 175 | 6250 | 438 | 2.4 | 60 | 167 |
| PH301-08 | -08 | 12 | 1/2 | 12.7 | 0.810 | 20.6 | 2500 | 175 | 6250 | 438 | 4.0 | 100 | 248 |
| PH301-10 | -10 | 16 | 5/8 | 16.0 | 1.030 | 26.2 | 2500 | 175 | 6250 | 438 | 4.3 | 110 | 417 |
| PH301-12 | -12 | 20 | 3/4 | 19.0 | 1.150 | 29.2 | 2500 | 175 | 6250 | 438 | 5.0 | 125 | 496 |
| PH301-16 | -16 | 25 | 1 | 25.4 | 1.450 | 36.8 | 2500 | 175 | 6250 | 438 | 6.3 | 160 | 714 |
| PH301-20 | -20 | 32 | 1.1/4 | 31.8 | 1.800 | 45.7 | 2500 | 175 | 6250 | 438 | 10.0 | 250 | 1106 |
